3mm Perforated Aluminum Sheet PVDF Finished Fireproof Customizable

PRODUCT DESCRIPTION

Custom perforated or Laser-engraved patterns aluminium wall panels for personalized,stylish architectural decoration.

Product Description:

Aluminum Wall Panels with custom perforations or laser cut engraved patterns for building screen decoration

Key Words

Aluminium alloy, aluminum panel, perforated aluminum sheet or panel, aluminum plate, customized aluminum panel, aluminum wall panel, aluminum ceiling panel,  ceiling tile, metal ceiling tile, wall cladding panel, metal wall cladding panel, aluminum wall cladding panel, aluminum curtain wall panel, building material, curtain wall aluminum panel,decoration material.

Aluminum Cladding Panel Compositio

Features

•Lightweight: Aluminum wall penels has a low density (about 2.7g/cm³) and weighs only 1/3 of steel, making it easy to transport and install.

•High plasticity: It can be bent and stamped into complex shapes (such as arcs and curved surfaces) through sheet metal processing to meet diverse design needs.

•Various surface treatments: common fluorocarbon spraying (PVDF), powder coating, anodizing, etc., with rich colors and strong weather resistance.

•Eco-friendly: 100% recyclable and in line with green building standards (e.g. LEED certification).

Application:

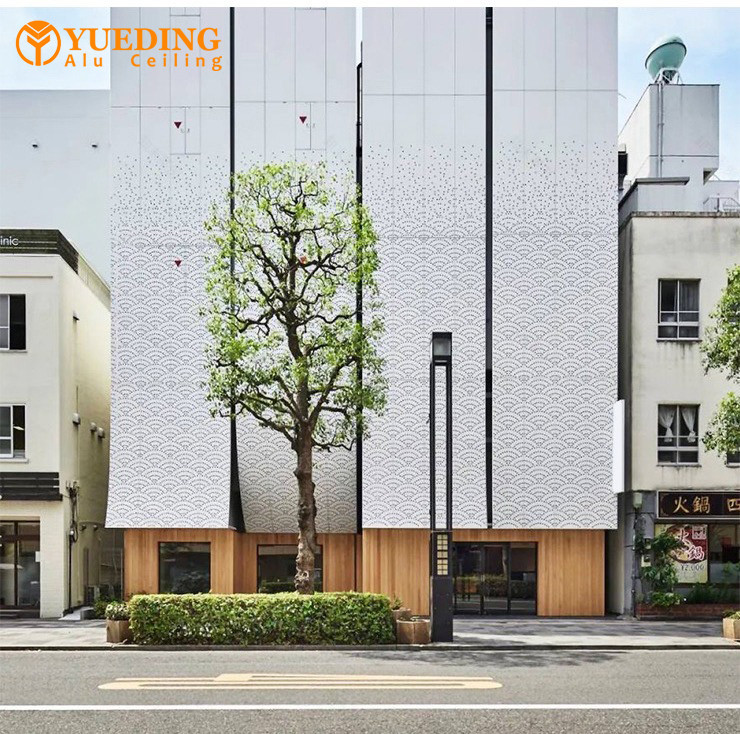

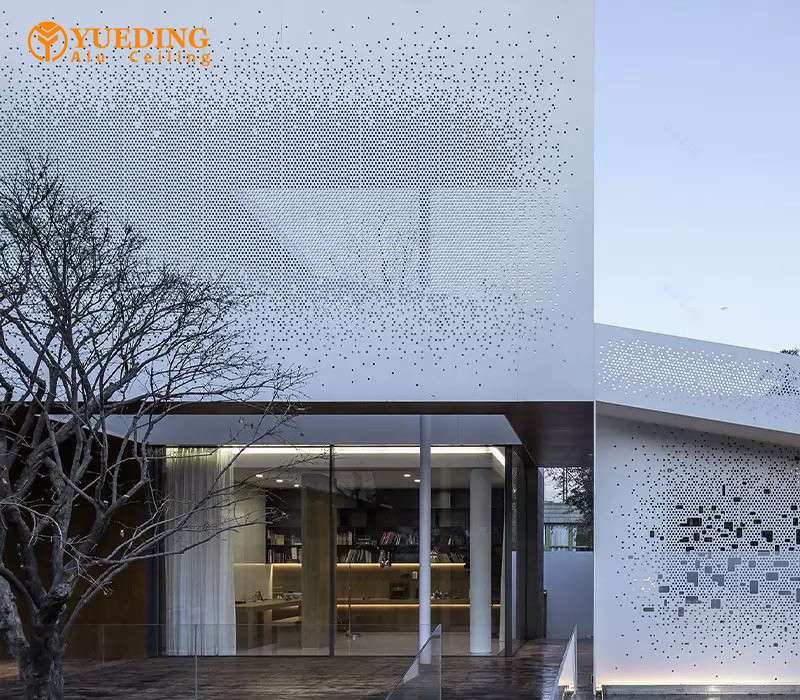

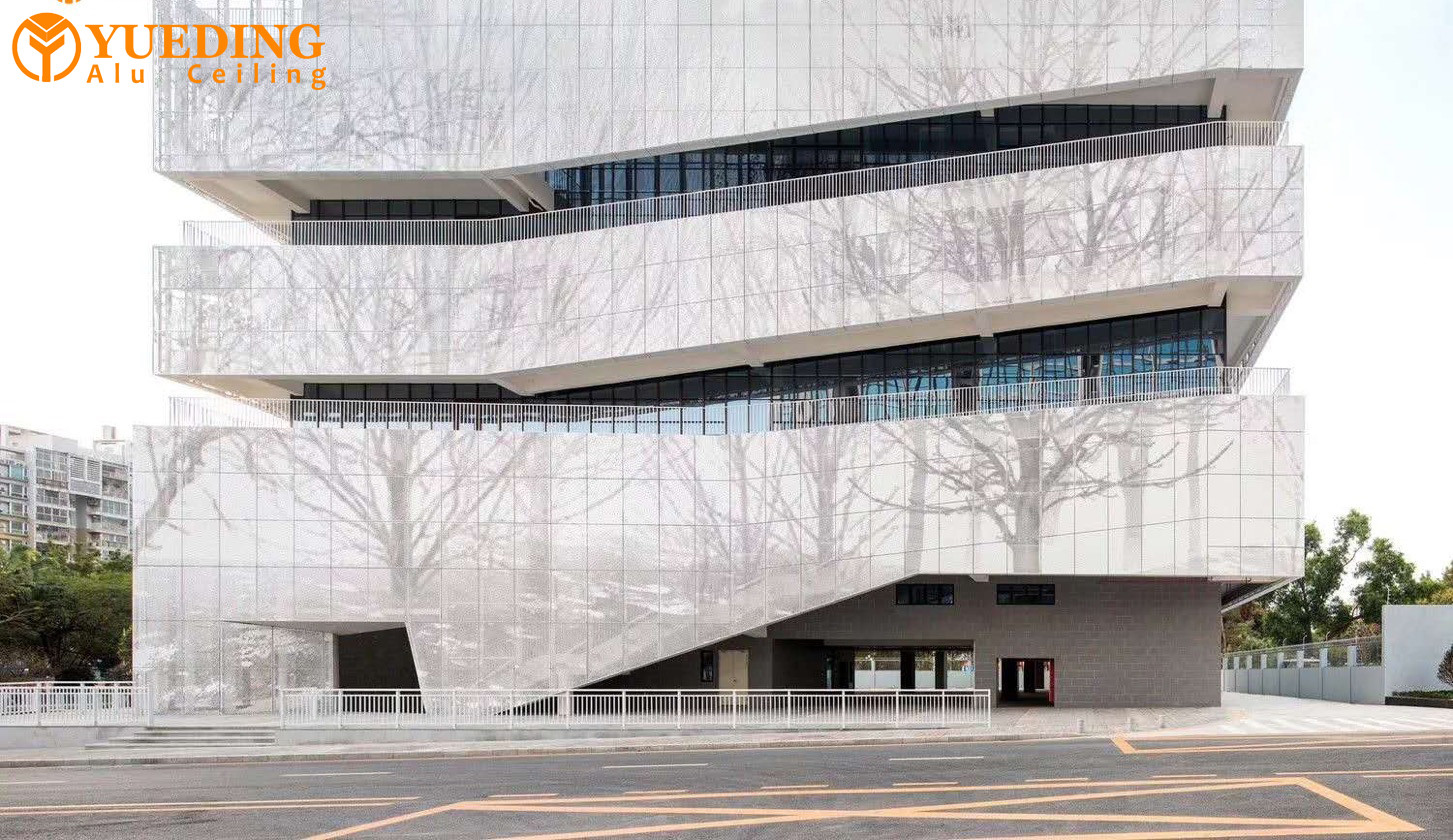

•Building façade: curtain wall, canopy, roof, etc., to meet the wind pressure requirements of high-rise buildings.

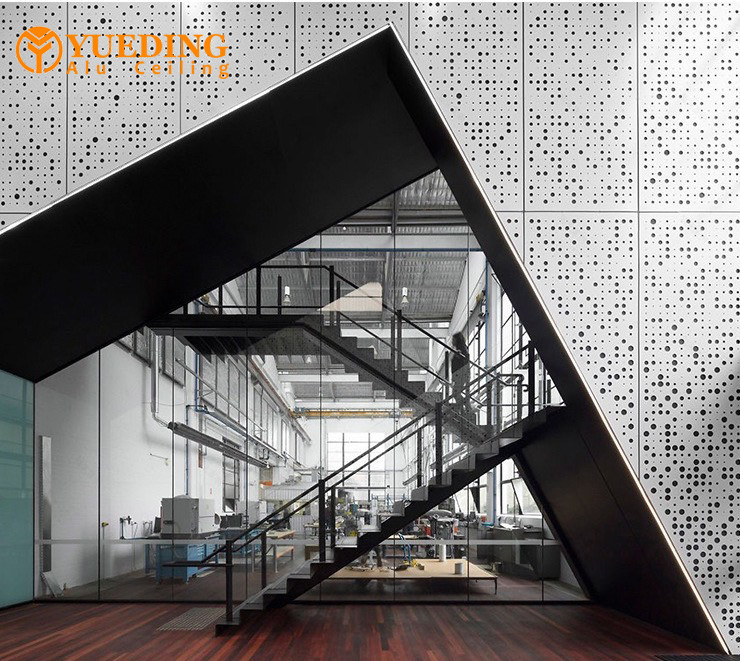

• Interior decoration: ceilings, walls, elevator edging, both aesthetic and fire performance (Class A fire protection).

•Public facilities: subway stations, shopping malls, hotels, restaurant chains, airports, stadiums, take advantage of their impact resistance and signage functions.

•Industrial applications: equipment housings, dust covers, corrosion-resistant, easy to clean.

Technology

•Processing technology:

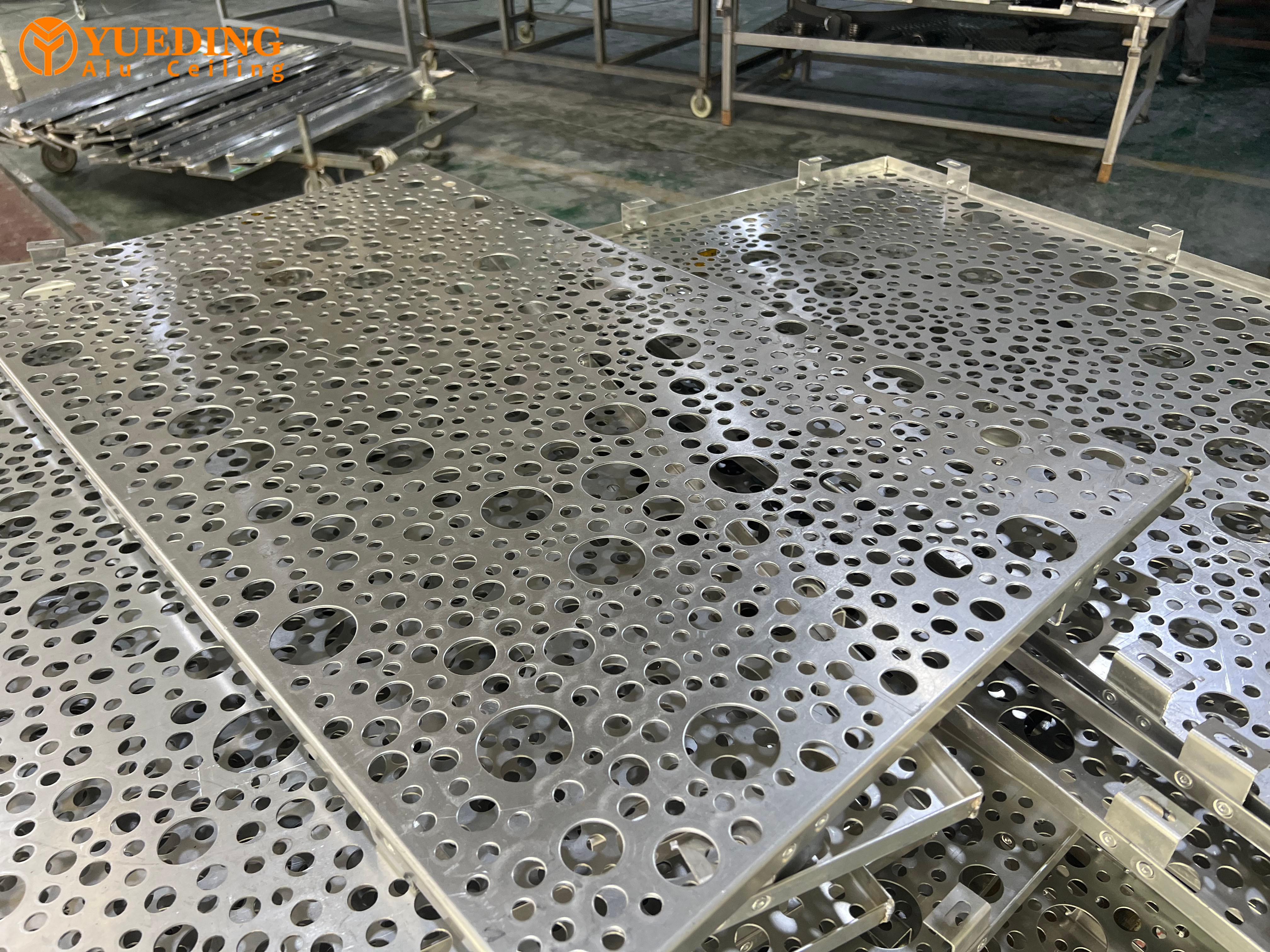

- CNC punching and shearing: precise opening and cutting to ensure dimensional consistency.

- Bending Forming: Seamless edge processing with a press brake to improve structural strength.

•Coating Technology:

- Fluorocarbon spraying: UV resistant, acid and alkali resistant, the life span can reach more than 20 years.

- Laminating Technology:Temporarily protects the surface from processing scratches.

•Installation Technique:

- Keel frame system: Aluminum alloy keel is used to achieve dry operation and fast construction.

- Back Bolt Fixation: Concealed installation to maintain a flat appearance.

Customization

Customized processing services for aluminum wall panels

• Color customization:We can customize it according to the color provided by the customer

• Surface treatment:PVDF coating, polyester coating, imitation wood grain, anodizing, etc

• Technical support:

- Fluorocarbon spraying (PVDF): the first choice for outdoor weather resistance, color retention for more than 15 years.

- Powder coating: environmentally friendly and solvent-free, suitable for indoor (matte/high gloss optional).

- Anodizing: Forming an oxide film with a strong metallic texture (such as the appearance of an Apple store).

• Design Recommendations:

- Low-saturation colors are recommended for building facades (to reduce light pollution).

- High-contrast color matching (e.g., black and gold) can be used for commercial spaces.

• Styling customization

Common looks:

- Flat panel: basic version, suitable for large area curtain walls (thickness 1.5-3.0mm).

- Shaped plates:

- Single/hyperbolic panels: arc, wavy (3D modeling and CNC bending required).

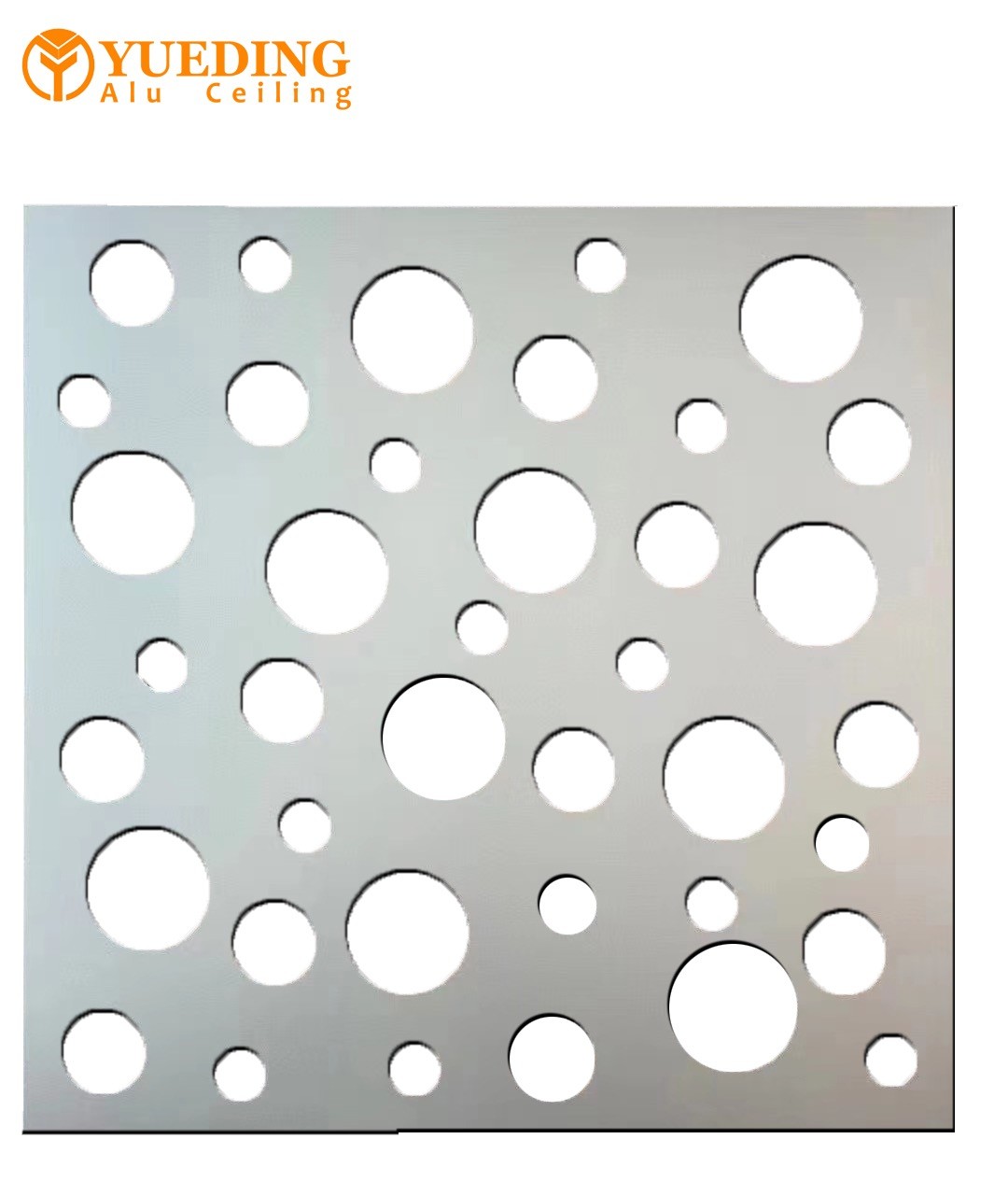

- Hollow engraving: laser cutting of traditional patterns or corporate logos (minimum 1mm accuracy of holes).

- Three-dimensional modeling:

- Stamping concave and convex plates: imitation weaving, geometric relief (die stamping).

•Style customization

- Mainstream Styles:

- Regular model: square/rectangular plate (size can be customized, up to 1.5m×4m).

- Modular:

- Honeycomb panel: aluminium panel with aluminium honeycomb core, lightweight and soundproof (thickness 10-50mm).

- Composite panels: Composite with insulation materials (rock wool) for energy-saving buildings.

- Functional:

- Ventilation panel: Insect netting is installed on the back for building vents.

- Acoustic panel: perforated surface with non-woven fabric on the back (noise reduction coefficient NRC≥0.8).

FAQ:

• Q:What is the brand name of your company?

A:Our company's brand name is YUEDING.

• Q:How much aluminum wallboard is produced each month?

  A:Aluminum wall panels can produce 20,000 square meters per month.

• Q:What are the common coefficients for aluminum wall panels?

A:A3003.

• Q:Where is the address where the product is processed?

A:CHINA,GUANGZHOU.

• Q:Whether it is possible to expedite production under special circumstances?

A:Of course, our service principle is that the customer is God.

• Q:How is the product packaged?

A:The products are packed in plastic protective film and plastic foam.
